3. Project Management

3.1. Create a New Project

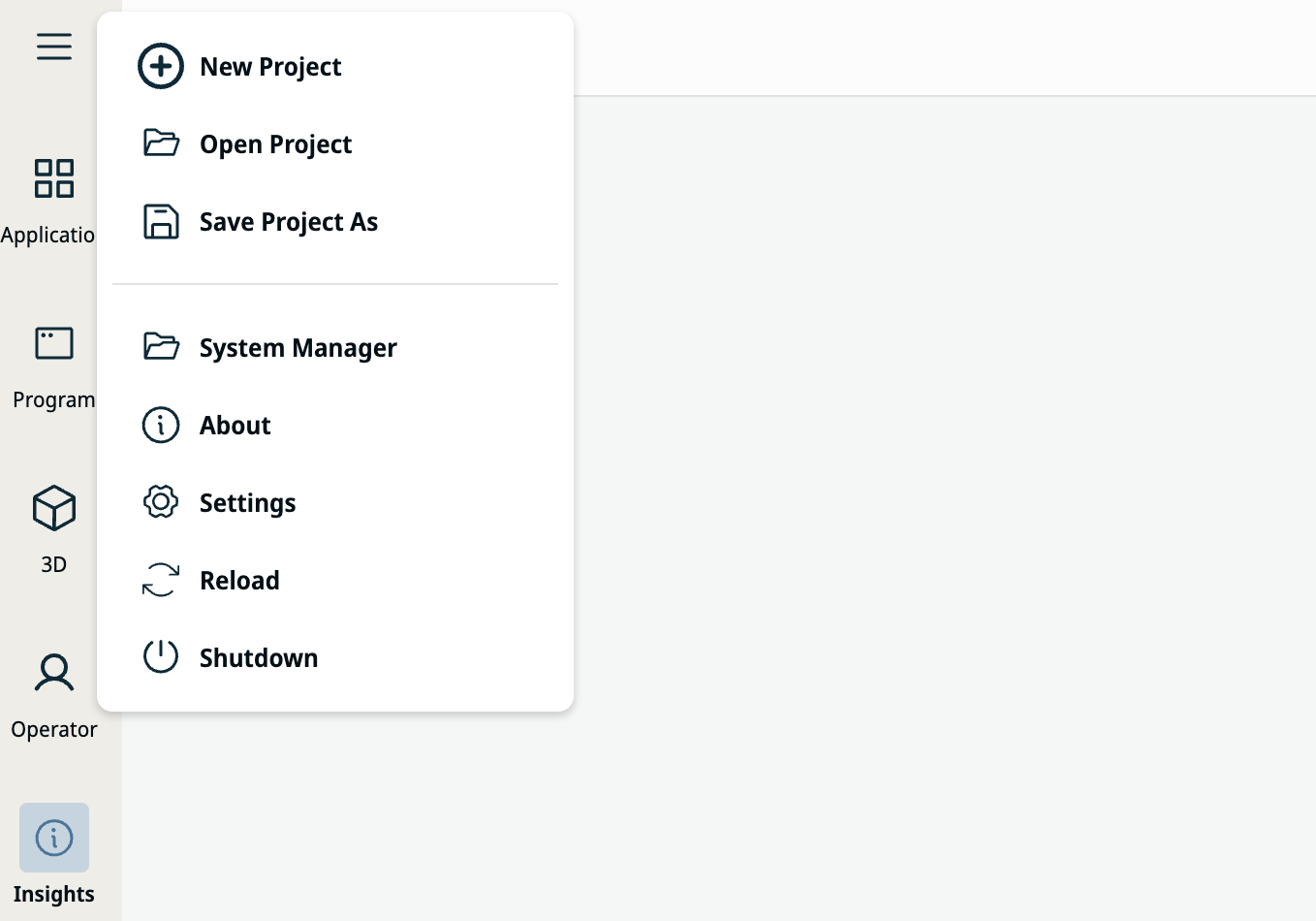

Open the main menu by clicking the hamburger icon in the top-left corner.

Hamburger menu options — Hamburger menu options

Select New Project.

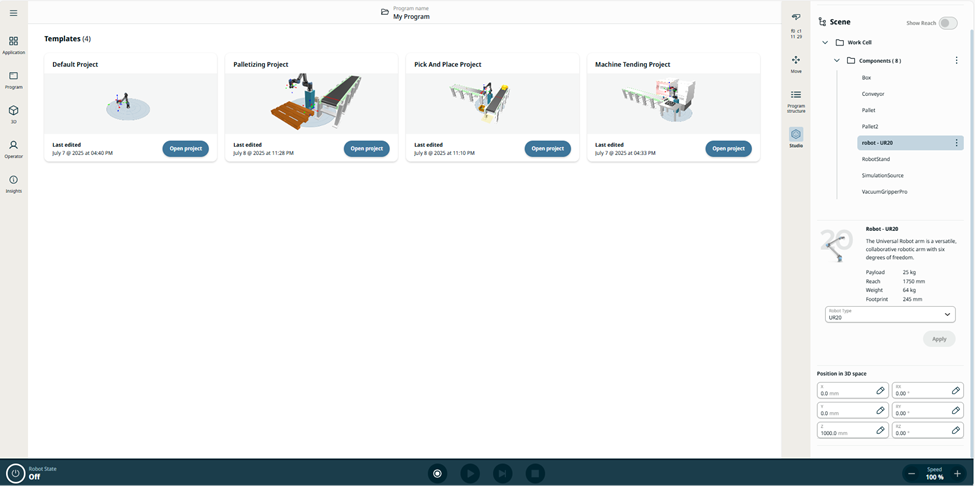

Choose one of the following options:
- Empty Project (blank workspace)
- Template (e.g., Palletizing, Pick & Place, Machine Tending)

New Project menu — New Project menu

3.2. Open an Existing Project

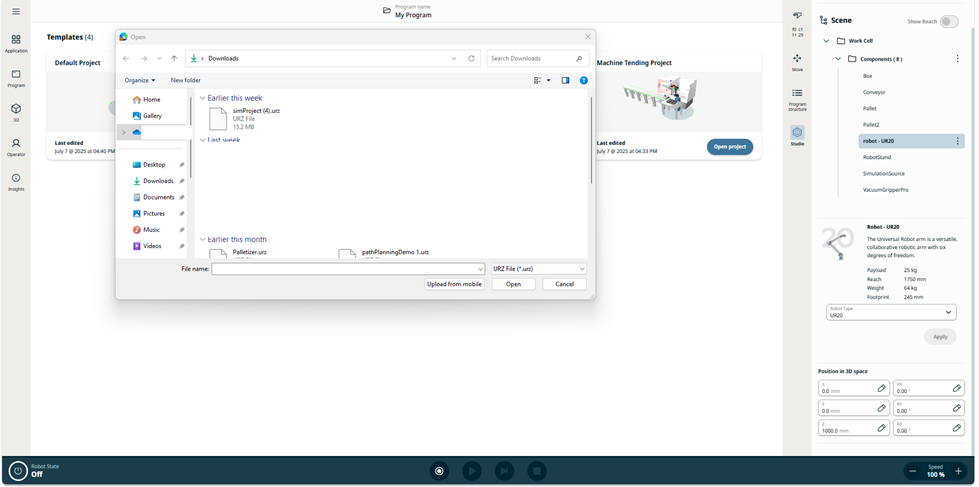

To open an existing project, open the main menu and choose Open Project. Then browse and select the desired project file.

Open Project Dialog — Open Project Dialog

3.3. Save and Load Projects

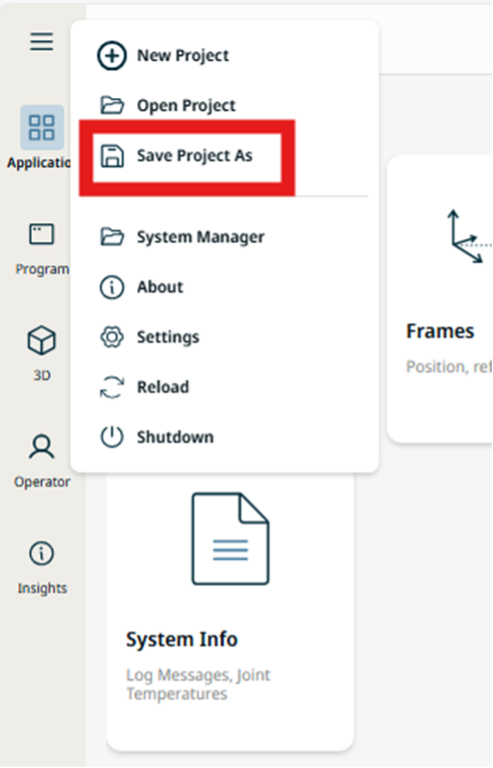

Click Save As to download the project file locally with the name simProject.urz.
Modify the file name if needed.

Save your project to your local file — Save your project to your local file

To reload, use Open Project and select the file.
