11. Loading URCaps

UR Studio now supports loading URCaps. Note that Studio URCaps are front-end only; SDK updates will expand capabilities in the future.

• Open the URCap section by clicking the program name on the screen to access the system manager.

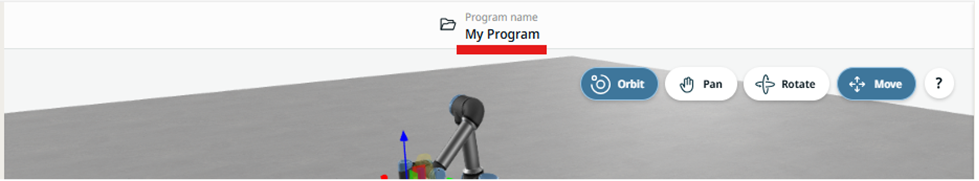

Click on Program name to access the system manager

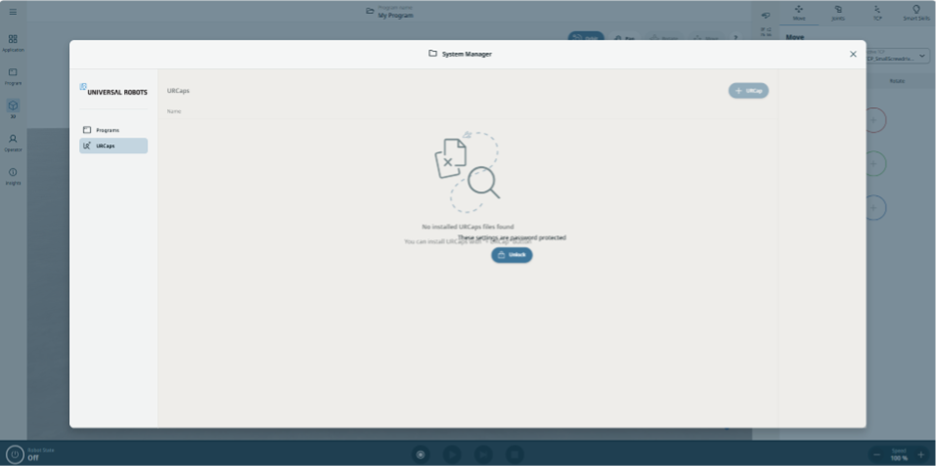

URCap import inside System Manager

• Click Unlock and Confirm (no password required).

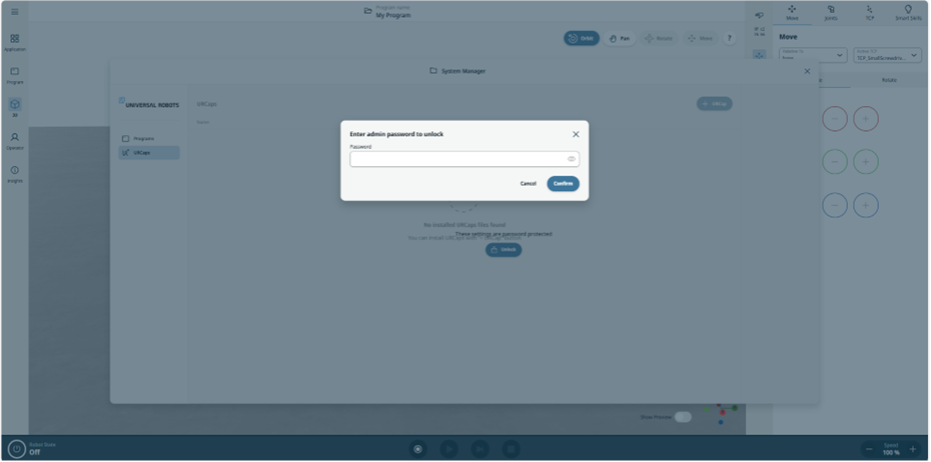

Password input, no password required

• Select a URCap file (URXCap).

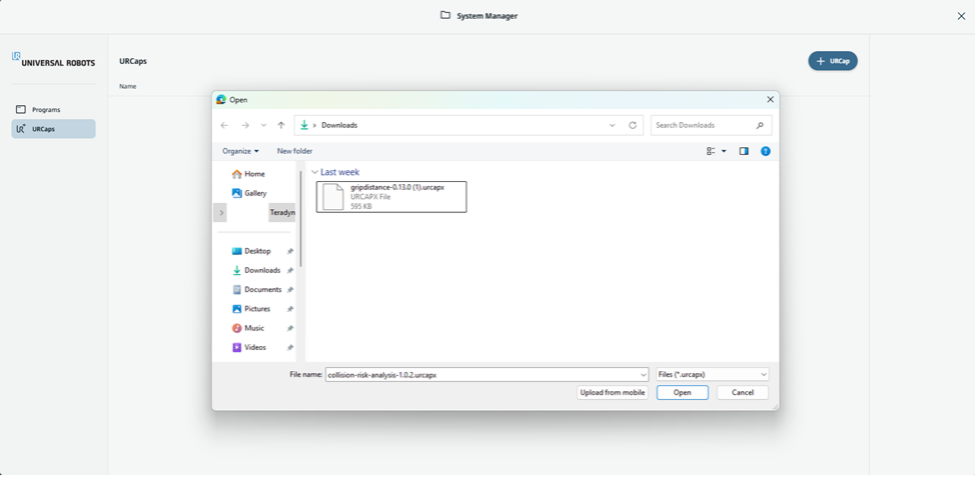

Loading a URCap

• Install the URCap.

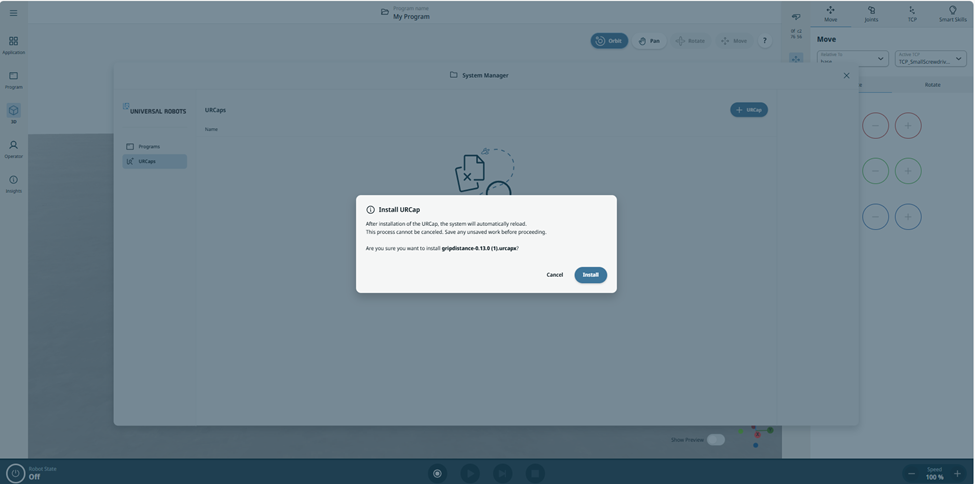

URCap installation

• After installation, refresh and check under Applications. Note: Only front-end URCaps are supported.

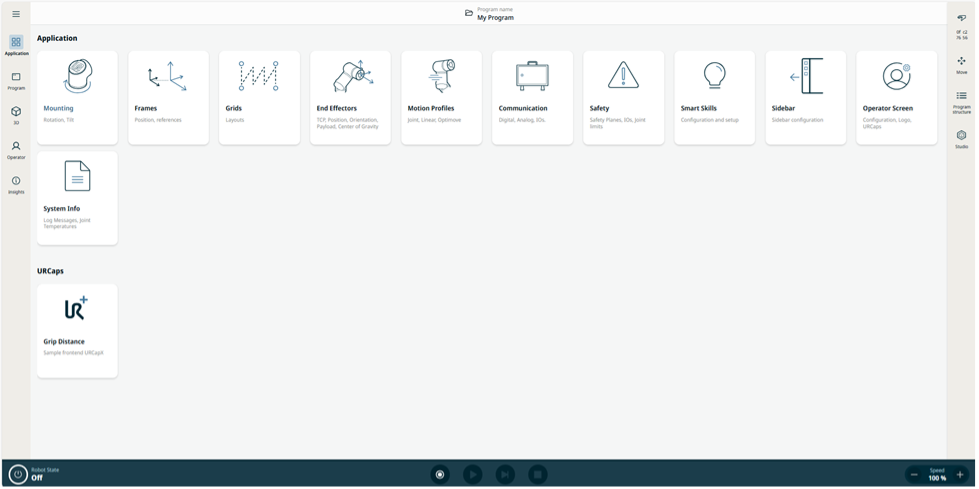

Sample URCap installed
